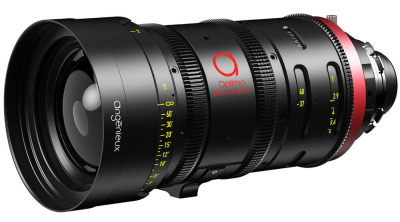

Angénieux Optimo Ultra Compact 28-76mm T2.2
Summary
The Optimo Ultra Compact lenses replace the famous academy awarded Optimo 15-40 and 28-76 lenses. Thanks to an innovative lens modular design (Interchangeable Rear Optics IRO technology™), both lenses allow the rear lens group to be exchanged between FF/VistaVision format (46.3mm image circle coverage) and U35mm (34.6mm image circle coverage).
Tech Specs
| Manufacturer | Angénieux |
| Series | Optimo |
| Model | Ultra Compact |
| Focal Length | 28-76mm |
| Zoom Ratio | 2.7x |
| Max Aperture | T2.2 |
| Min Aperture | T22 |
| Format | Ultra 35 |
| Image Circle | ⌀34.6 mm |
| Minimum Focus | 2 ft. |
| Focus Rotation | 310° |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | none |
| Front Diameter | 114mm |
| Filter Thread | none |
| Focus/Zoom Rod | - |
| Native Mount | PL |
| Data Protocol | Cooke /i |
| Length | 9.2 in. |
| Weight | 2585 g |
| Body Telescope | none |
| Body Material | Aluminum |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | Manual |
History
Country of Origin: France
Release Date: 2021
Launch Price: $49,900
Design Revisions:
Service
Notes
