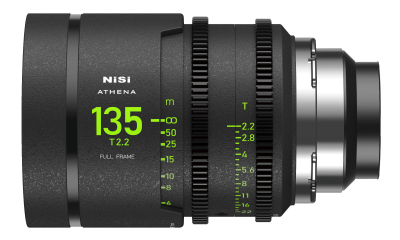

NiSi Athena 135mm T2.2
Summary
Introducing the NiSi ATHENA PRIME Full Frame Cinema Lenses, including 8 Lenses 14mm T2.4, 18mm T2.2, 25mm T1.9, 35mm T1.9, 40mm T1.9, 50mm T1.9, 85mm T1.9, 135mm T2.2 in PL, E, L, G and RF Mounts. The lenses are designed with a full-frame and 46mm imaging circle, covering focal lengths from 14mm ultra-wide angle to 85mm portrait focal length, making it the perfect choice for most shooting scenarios.
Tech Specs
| Manufacturer | NiSi |
| Series | Cine Prime |
| Model | Athena |
| Focal Length | 135mm |
| Max Aperture | T2.2 |
| Min Aperture | T22 |
| Format | Full Frame |
| Image Circle | 46mm |
| Minimum Focus | 39.3in |
| Focus Rotation | 300 |
| Iris Blades | 10 |
| Optical Design | - |
| Squeeze | n/a |
| Front Diameter | 80mm |
| Filter Thread | 77mm |
| Focus/Zoom Rod | n/a |
| Native Mount | PL, E, RF, G, L |
| Data Protocol | n/a |
| Length | - |
| Weight | 980g |
| Body Telescope | none |
| Body Material | Aluminum |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | n/a |
History
Country of Origin: China
Release Date: 2023
Launch Price: $1,349
Design Revisions:
Service
Notes
Media
