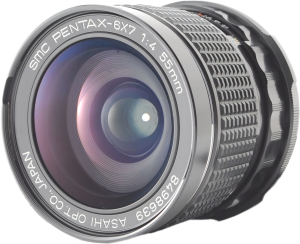

Pentax 67 SMC Takumar 55mm f/4 Ver 2
Summary
The SMC Pentax 67 55mm f/4 is a wide-angle prime introduced in 1986 for the Pentax 6×7 medium format system, offering a 65° horizontal field of view—roughly equivalent to a 28mm lens on 35mm film. It’s the third and most refined version of Pentax’s 55mm lineup, known for its improved optical formula and compact design compared to earlier f/3.5 variants. It features an 8-element - 7-group optical design, Super Multi-Coating (SMC), and an 8-blade automatic diaphragm. The lens stops down to f/22, focuses as close as 35cm, and delivers 0.24× magnification. It uses a 77mm filter thread, weighs 725g, and measures 92.5 × 78.5mm. It includes a PH-SA 77 mm hood, clip-on cap, and was often paired with a dedicated hard case. The lens has no “A” setting, so it’s best used in manual or aperture-priority modes.
Came in two variants with different specs. See other version.
Tech Specs
| Manufacturer | Pentax |
| Series | 67 |
| Model | SMC Takumar |
| Focal Length | 55mm |
| Max Aperture | f/4 Ver 2 |
| Min Aperture | f/22 |
| Format | 6×7 |
| Image Circle | - |
| Minimum Focus | 35cm |
| Focus Rotation | ° |
| Iris Blades | 8 |
| Optical Design | 8/7 |
| Squeeze | none |
| Front Diameter | 92.5mm |
| Filter Thread | 77mm |
| Focus/Zoom Rod | none |
| Native Mount | Pentax 6×7 |
| Data Protocol | none |
| Length | 78.5mm |
| Weight | 725g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date: 1986
Launch Price:
Design Revisions:
