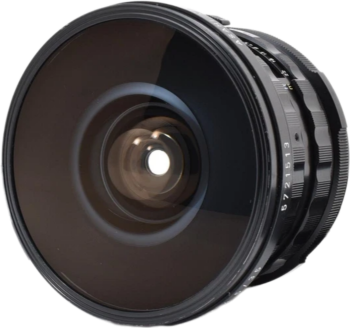

Pentax 67 SMC Takumar Fish-Eye 35mm f/4.5
Summary
A fish-eye lens with an angle of view 180 degrees diagonally. This lens came in three variants with the same optics and dimensions. The first version weighs 920g, the other are a little bit lighter at 900g.
Came in three variants with similar specs:
FISH-EYE-Takumar 6×7 35mm f/4.5 in 1969; Super-Multi-Coated Takumar 6×7 35mm f/4.5 FISH-EYE in 1971; SMC Pentax 67 35mm f/4.5 FISH-EYE in 1989
Tech Specs
| Manufacturer | Pentax |
| Series | 67 |
| Model | SMC Takumar Fish-eye |
| Focal Length | 35mm |
| Max Aperture | f/4.5 |
| Min Aperture | f/22 |
| Format | 6×7 |
| Image Circle | - |
| Minimum Focus | 1.5ft |
| Focus Rotation | - |
| Iris Blades | - |
| Optical Design | 11/7 |
| Squeeze | none |
| Front Diameter | 102mm |
| Filter Thread | built-in |
| Focus/Zoom Rod | none |
| Native Mount | Pentax 6×7 |
| Data Protocol | none |
| Length | 73mm |
| Weight | 920g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin: -
Release Date: 1969
Launch Price: -
Design Revisions:
Service
Cine-Mod
Notes
Media
